3.5 Ton Portable Offshore A-Frame for Service Vessels
At OUCO, we are dedicated to delivering innovative and reliable Offshore A-Frames equipment tailored to the offshore, oil and gas, research, and defense industries.
Our A-Frames are meticulously designed and engineered for installation on offshore support vessels, handling a wide range of loads from remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs) to workboats and other specialized equipment. They are also suitable for launching and recovering subsea assets, deepwater sampling, ROV deployment, and water rescue operations.
Built to withstand the harshest marine environments, our Offshore A-Frame crane ensure optimal performance even in challenging sea conditions. We use robust materials, advanced engineering techniques, and rigorous quality control measures to guarantee their longevity and reliability.
Safety is a priority, with redundant systems, fail-safe mechanisms, and DNV certification ensuring strict adherence to international safety standards.
OUCO Offshore A-Frames streamline operations with quick deployment and retrieval times, minimizing downtime and maximizing productivity. We offer customized A-Frame solutions to meet the specific requirements of each project, ensuring a perfect fit for your unique application.
Dimensions
| Main Technical Parameters | Value |
| Safe Working Load (SWL) | 3.5 T |
| Dynamic Load Factor | 1.7 |
| Working Distance Outside Frame | 4048 mm (39 degrees outboard) |
| Working Distance Inside Frame | 1280 mm (14 degrees inboard) |
| Clear Span | 2930 mm |
| Luffing Time (Average) | 100 s |
| Docking Clearance Height | 3200 mm |
| Maximum Pitch Buffer Angle | +15° (outboard limit position) |
| Maximum Yaw Buffer Angle | ±15° |
| Shock Absorber Rotation Angle | 220° |
| Shock Absorber Rotation Speed | 0.7 r/min |
| Auxiliary Lifting Point | SWL1T x 2 |
GA Drawing

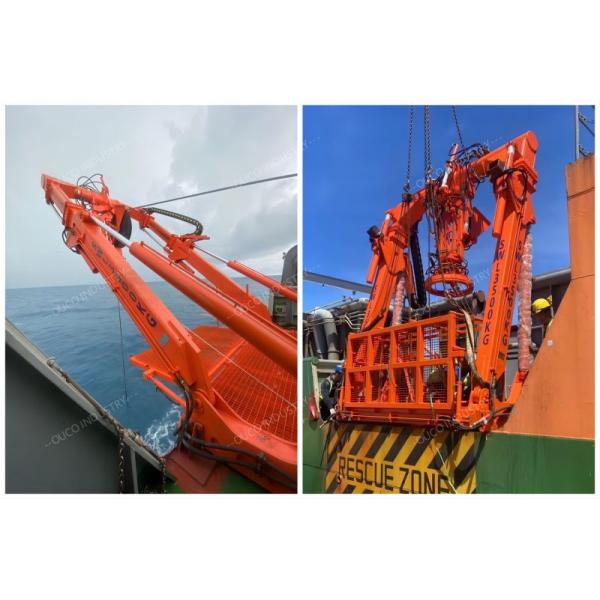

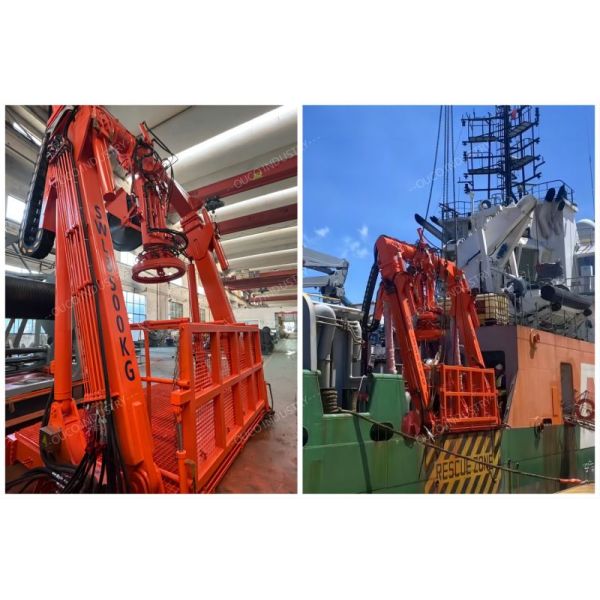

Product Picture
FAQ
1. Q: Can this type work in hazardous environments?
A: Sure! We can customize it for you, acid-proof or explosion-proof, no problem with that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be on your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
|
|
